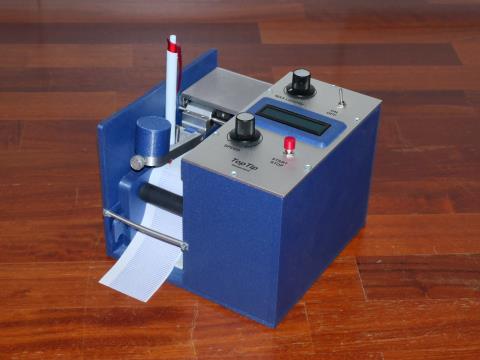

Low Cost Writing Test Machine

If you buy or produce:
	fully assembled ball pens markers fibre pen

you absolutely must have our SIMPLEWRITE writing test machine!

Actually only with its new high precision microprocessor control you can test the quality of your pens in an absolutely objective and repetitive way, as all writing conditions are tightly under control.

A practical multi functional display helps you to check and set at any time the writing speed and the length of the test.

And most important for small and medium enterprises: you will be able to test your pens at an incredible convenient price.

You can easily modify following parameters:
	writing speed of refill (in meters per minute) length of writing test (in meter) automatic stop after a predefined writing length (in meter) momentary pause and restart at same speed writing angle writing force ranging from 0.2 to 2 N (definable at order) drawing short strokes (ideal for testing the starting behaviour of pens)

All modified parameters will be remembered by the machine even after switching it off.

Main Characteristics:
Voltage:	220 V - 50 Hz (optional 110V - 60 Hz)
Weight (net)	~1.6 Kg
Paper consumption for 1000 m writing length	20 m
Writing speed	3 - 8 m/min
Preset writing length	2 - 1000. meters
Writing angle	about 60° - 90°
Writing force (definable at order)	1.0 N (0.2 - 2 N optional)
Short strokes length	about 5 cm
Max pen dia.	17 mm
Paper roll dimensions (calculator type)	width: 57  mm external diam.: 75  mm max core diam.: 15  mm paper length: 40  m (typ)

Please send us samples or photos of all the pens you want to test in order to check if they all fit in our standard adapter. Some pens may require special adapters.

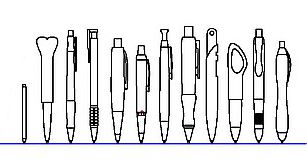

Here you may see a limited selection of pens which can be tested on our SIMPLEWRITE:

Please contact us for more information and offers !

Alternatively you may check other solutions which allow you to test your writing instruments.

External appearance and characteristics may be modified without notice
(*) Patent pending
